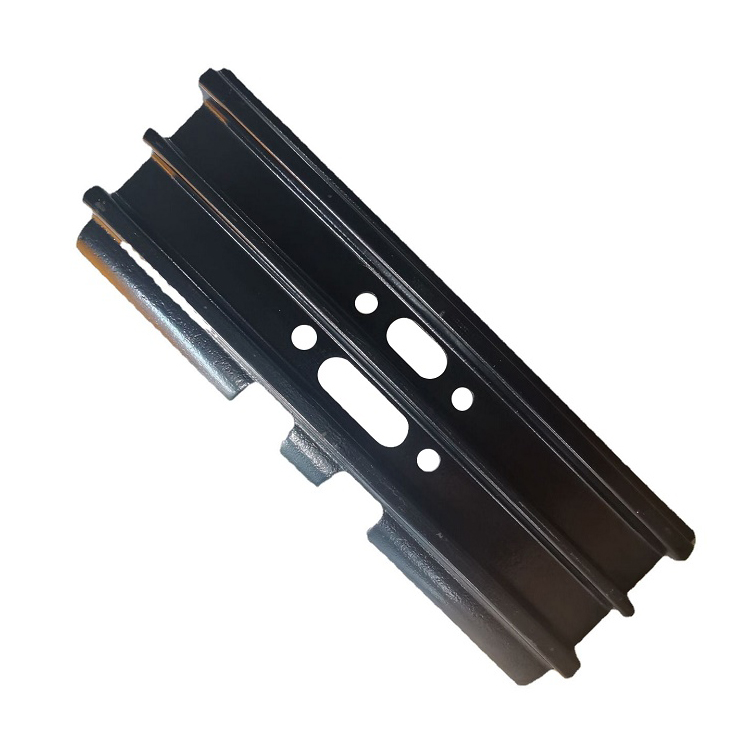

See the parameters of wheel type wood grabber. Excavator suitable for working, made in Russia Excavator Track Shoe
SN Item Parameter SN Item Parameter
1 Model LG110-8 18 F – Minimum ground clearance 310mm
2. Operating quality of the whole machine 9800KG 19 G – tail turning radius 2130mm
3 Bucket capacity 0.28/0.33m 20 H-wheel base 2390mm
4 Engine model YC4FA85-T300 21 I-tire model 825-20mm
5 Power 62.5KW/2200RPM 22 J-Turntable width 2200mm
6 Fuel tank volume 120 L 23 K – maximum excavation height 8055mm
7 Traveling speed 30Km/h 24 L – maximum unloading height 5984mm
8 Slewing speed 12 r/min 25 M – maximum excavation depth 2969mm
9 Gradeability 30 ° 26 N – maximum excavation distance 7537mm
10 Bucket digging force 42.03 KN 27 Stick length 2300mm
11 Hydraulic pump type Load sensing pump 28 Boom length 3850mm
12 Working pressure 22MPa 29 Maximum unloading height of fixture 5984mm
13 A – The total length during transportation is 6815mm 30, and the maximum lifting weight of the clamp is 600Kg
14 B-full width 2200mm during transportation 31 Maximum opening size of clamp 1240mm
15 C – Full height of boom during transportation 2850mm 32 Minimum opening size of clamp 205mm
16 D – Full height 3170mm during transportation 33 Maximum lifting height of clamp 8300mm
17 E-counterweight ground clearance 1170mm 34 Maximum gripping distance of clamp 7080mm
LG110H-8 is a product that integrates energy conservation, reliability and comfort, and is widely used in site hoisting and forestry felling. Equipped with enhanced working device and optimized matching power hydraulic system, it is suitable for various low-quality working conditions. The national third low speed high torque engine is adopted, which is supercharged and intercooled to meet T3 emissions. The carefully adjusted EMS engine management technology is adopted to achieve the balance between fuel consumption and efficiency. The engine has strong power, economic and environmental protection, and high reliability.made in Russia Excavator Track Shoe
Post time: Oct-02-2022
